Journal of Korean Society of Steel Construction - Vol. 36, No. 6, pp.377-387

ISSN: 1226-363X (Print) 2287-4054 (Online)

Print publication date 27 Dec 2024

Received 24 Oct 2024 Revised 27 Nov 2024 Accepted 28 Nov 2024

DOI: https://doi.org/10.7781/kjoss.2024.36.6.377

CFT 모듈을 이용한 단면개선 연속 강박스 거더의 하중저항 효과 분석

이학준¹ ; 하태열² ; 조광일³ ; 안진희⁴^{, *}

1박사과정, 경상국립대학교, 건설시스템공학과
2부장, (주)택한, 연구개발팀
3팀장, (주)택한, 연구개발팀
4교수, 경상국립대학교, 건설시스템공학과

Load Resistance Effect Analysis of the Continuous Steel Box Girder with the Cross-sectional Improvement by CFT Modules

Lee, Hak Joon¹ ; Ha, Tae-Yul² ; Cho, Kwang-Il³ ; Ahn, Jin-Hee⁴^{, *}

1Ph.D. Student, Dept. of Civil and Infrastructure Engineering, Gyeongsang National University, JinJu, 52725, Korea
2Manager, Tekhan Inc., Dept. of R&D Team, Uiwang, 16006, Korea
3Director, Tekhan Inc., Dept. of R&D Team, Uiwang, 16006, Korea
4Professor, Dept. of Civil and Infrastructure Engineering, Gyeongsang National University, JinJu, 52725, Korea

Correspondence to: ^*Tel. +82-55-772-3293 Fax. +82-55-772-3209 E-mail. jahn@gnu.ac.kr

초록

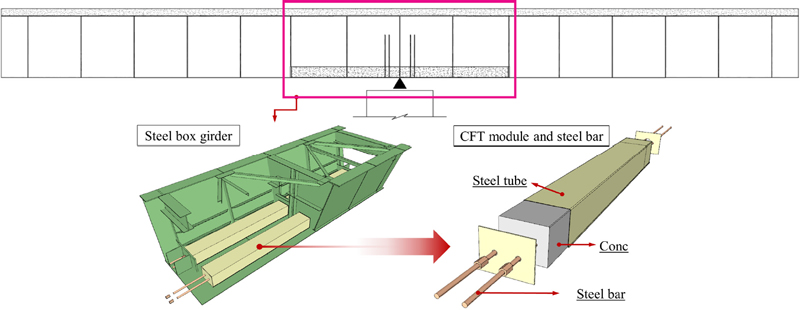

CFT 모듈을 이용한 개구제형 연속 강박스 거더의 단면응력 개선방법은 부모멘트 영역의 강박스 내부에 콘크리트 충전 강관(CFT) 모듈을 설치하여 단면력을 향상시키고 추가적인 프리스트레싱을 도입하여 하부플랜지의 응력상태를 개선하는 공법이다. 본 연구에서는 CFT 모듈을 이용한 연속 강박스 거더의 단면응력 개선방법의 효과를 알아보기 위하여 실험과 수치해석을 수행하였으며, 이를 위하여 하부플랜지에 CFT 모듈을 설치한 강박스 시험체를 제작하고 프리스트레싱 하였으며 3점 휨시험을 실시하여 시험체의 단면응력 거동을 확인하였다. CFT 모듈을 이용한 프리스트레싱과 3점 휨시험은 유한요소해석을 통하여 검증하였으며 검증된 모델을 이용하여 CFT 모듈의 제원에 따라 변화하는 단면응력상태를 비교하였다. CFT 모듈의 제원에 따른 유한요소해석 결과, 강박스 거더 내부에 CFT 모듈의 설치함으로써 강박스 거더의 단면적이 증가하여 단면의 강성을 높일 수 있고, 추가적인 프리스트레싱을 도입하여 부모멘트 영역의 강박스 거더 단면을 개선시킬 수 있는 것으로 나타났다.

Abstract

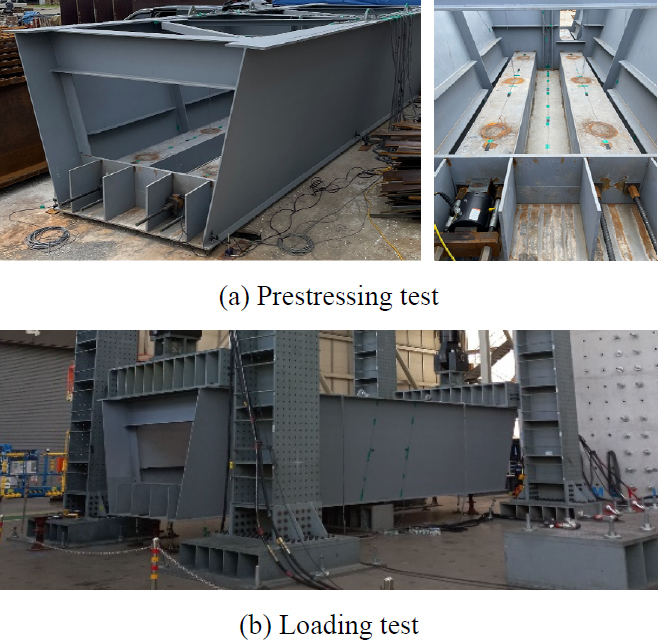

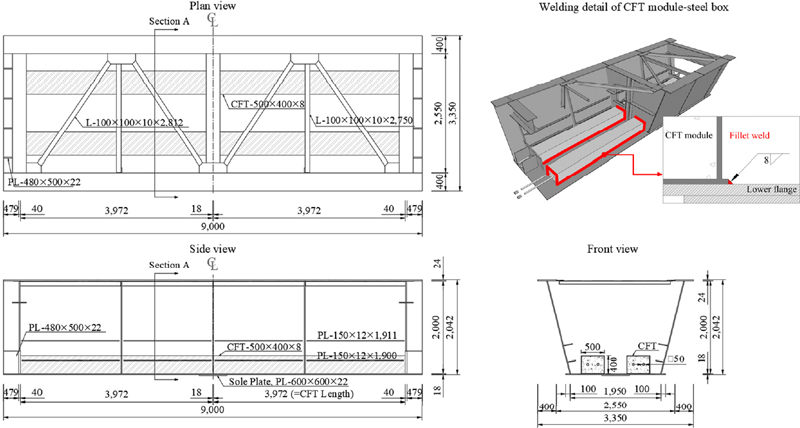

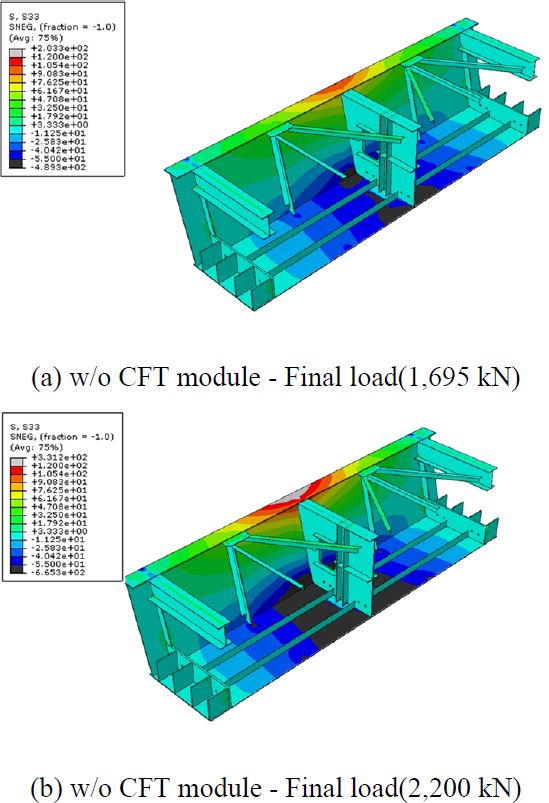

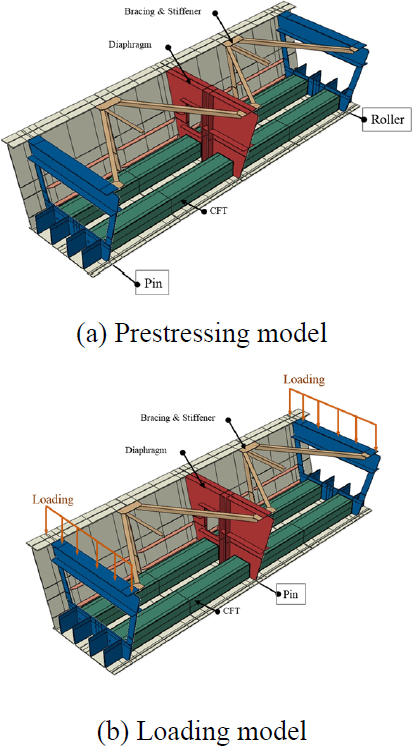

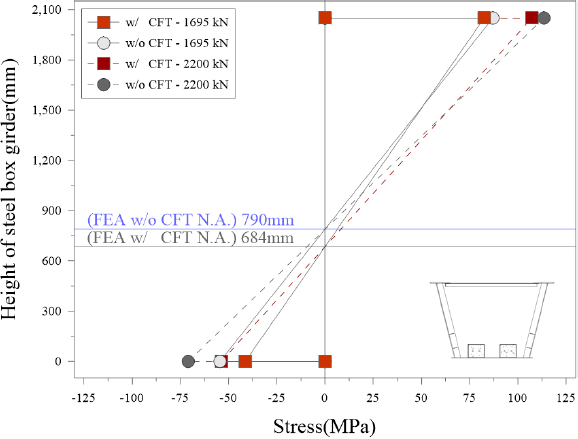

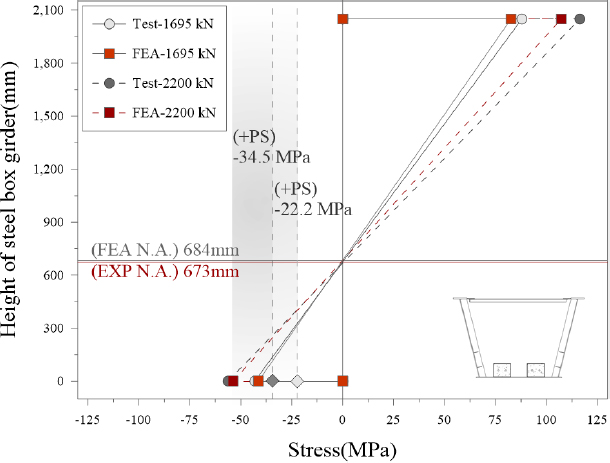

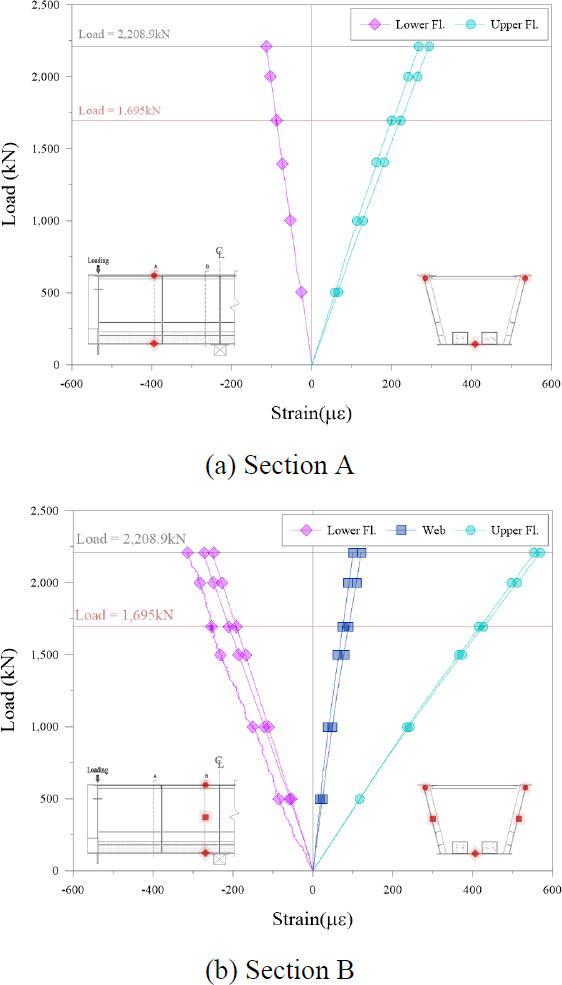

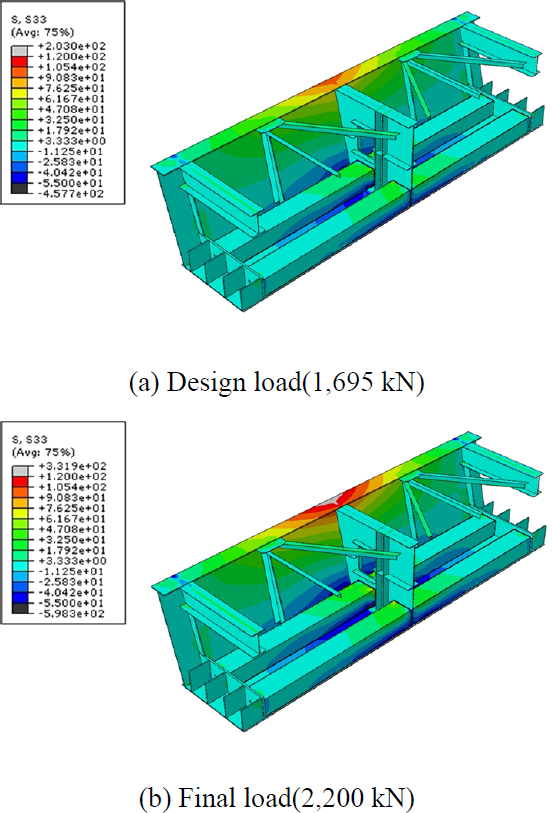

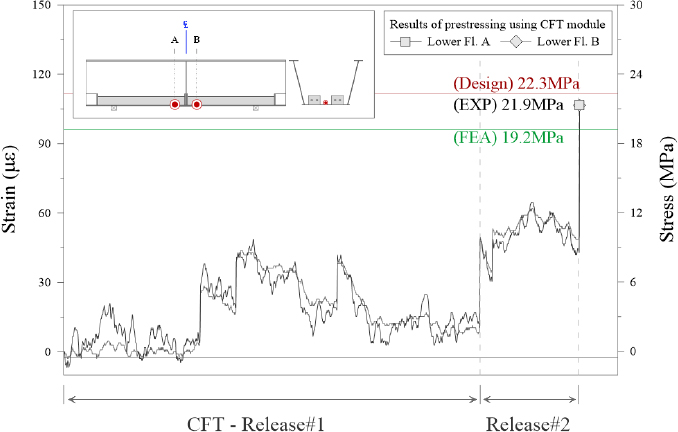

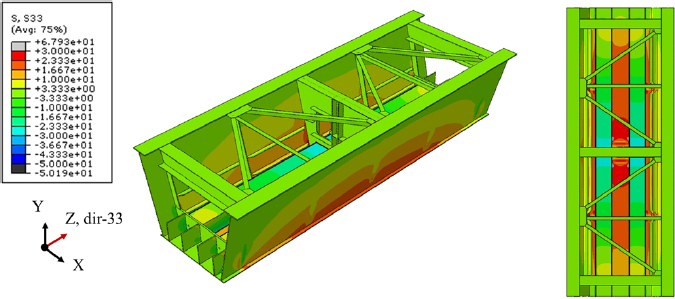

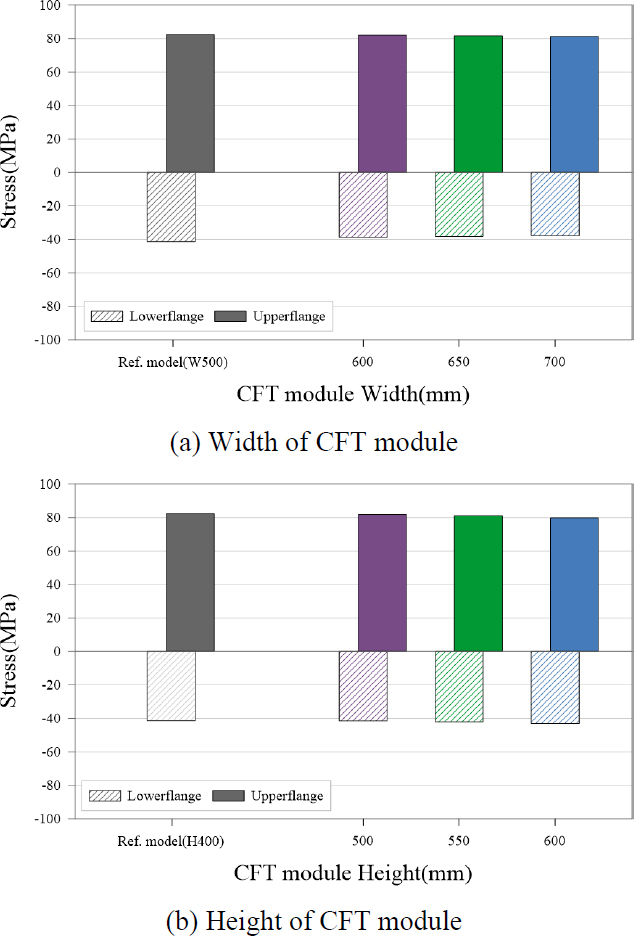

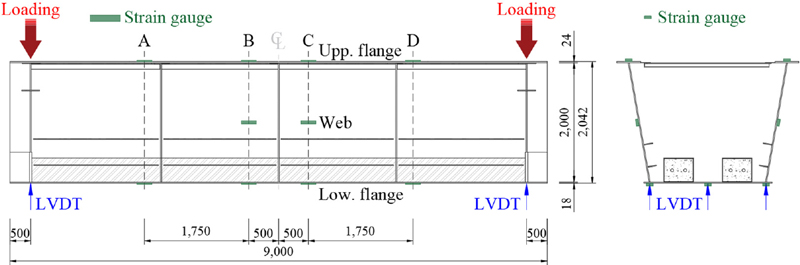

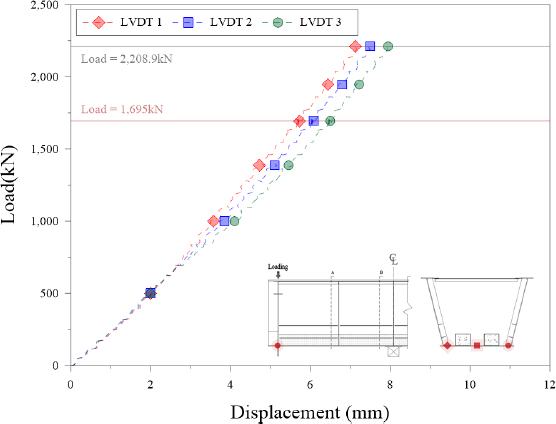

The continuous open-top steel box girders with improved cross-sections by CFT modules reduce cross-sectional stresses by installing concrete-filled steel tubes(CFT) in the hogging moment region. In this study, an experimental and numerical analysis was conducted to investigate the effects of a method for reducing a cross-sectional stress for continuous steel box girders using CFT members. To analyze the cross-sectional improvement for continuous steel box girder by CFT modules, a steel box specimen with a CFT module was fabricated, and induced prestress in steel box specimen by CFT modules. And confirmed the cross-sectional stress behavior of the steel box specimen through the three-point flexural test. The prestressing test using CFT modules and the three-point flaexural test were verified through finite element analysis(FEA), and compared the cross-sectional stresses under the same condition depending on the cross-section of the CFT module. The results of the finite element analysis depending on the cross-section of the CFT module showed that as the cross-section of the CFT module increased under the same load conditions, the stress of the lower flange of the steel box girder decreased due to the increase in cross-sectional stiffness. In addition, Inducing prestress for the steel box girder confirmed to improve the cross-section of steel box girder in the hogging moment region.

Keywords:

Continuous open-top steel box girder, Hogging moment region, CFT module, Prestressing test, Flexural test

키워드:

개구제형 연속 강박스 거더, 부모멘트 영역, CFT 모듈, 프리스트레싱 시험, 휨 시험

Acknowledgments

본 연구는 국토교통부 국토교통기술촉진연구사업(과제번호: 22CTAP-C163558-02)의 연구비 지원으로 수행되었으며, 이에 감사드립니다.

References

Saul, R. (1996) Bridges with Double Composite Action, Structural Engineering International, Taylor & Francis, Vol.6, No.1, pp.32–36. [https://doi.org/10.2749/101686696780496067]
Choi, H.Y., Suh, S.K., Oh, M.S., Oh, S.H., and Kim, H.S. (2007) Temporary Stresses by Applying Construction Methods for Continuous Steel-Concrete Double Composite Box Girder Bridges, Journal of Korean Society of Steel Construction, KSSC, Vol.19, No.6, pp.681–693 (in Korean).
Cho, E.Y., and Shin, D.K. (2007) Flexural Design of Double Composite Box Girder over Interior Pier by LRFD Method, Journal of Korean Society of Steel Construction, KSSC, Vol.19, No.6, pp.737–750 (in Korean).
Kim, H.-H., and Shim, C.-S. (2009) Experimental Investigation of Double Composite Twin-Girder Railway Bridges, Journal of Constructional Steel Research, Elsevier, Vol.65, No.6, pp.1355–1365. [https://doi.org/10.1016/j.jcsr.2009.02.004]
Shim, C.S., Whang, J.W., Chung, C.H., and Lee, P.G. (2011) Design of Double Composite Bridges using High Strength Steel, Procedia Engineering, Elsevier, Vol.14, pp.1825–1829. [https://doi.org/10.1016/j.proeng.2011.07.229]
Xu, C., Su, Q., Wu, C., and Sugiura, K. (2011) Experimental Study on Double Composite Action in the Negative Flexural Region of Two-Span Continuous Composite Box Girder, Journal of Constructional Steel Research, Elsevier, Vol.67, No.10, pp.1636–1648. [https://doi.org/10.1016/j.jcsr.2011.04.007]
Su, H., Su, Q., Xu, C., Casas, J.R., and Zhou, G. (2022) Mechanical Performance Based Rationalization Research on Steel-Concrete Double Composite Action, Journal of Constructional Steel Research, Elsevier, Vol.197, 107492. [https://doi.org/10.1016/j.jcsr.2022.107492]
Kim, H.H., Shim, C.S., Yun K.J., and Lee, P.G. (2005) Evaluation of Static Strength of Mixed Stud Shear Connection in Double Composite Bridges, Journal of Korean Society of Steel Construction, KSSC, Vol.17, No.5, pp.549–559 (in Korean).
Shim, C.S., Kim, H.H., and Yun, K.J. (2006) Behavior of Negative Moment Region of Continuous Double Composite Railway Bridges, Journal of Korean Society of Steel Construction, KSSC, Vol.18, No.3, pp.339–347 (in Korean).
Chen, S. (2005) Experimental Study of Prestressed Steel-Concrete Composite Beams with External Tendons for Negative Moments, Journal of Constructional Steel Research, Elsevier, Vol.61, No.12, pp.1613–1630. [https://doi.org/10.1016/j.jcsr.2005.05.005]
Choi, D.-H., Yoo, H., Kim, Y.-S., and Kim, S.-W. (2009) Strengthening Design Using Rating Factor Considering Increment of Tendon Force for Two-Span Steel-concrete Composite Bridges Strengthened by Straight External Tendons, Journal of the Korea Institute for Structural Maintenance and Inspection, KSMI, Vol.13, No.2, pp.153–164, (in Korean)
Park, S., Kim, T., and Hong, S.-N. (2010) Flexural Behavior of Continuous Steel Girder with External Post-Tensioning and Section Enhancement, Journal of Constructional Steel Research, Elsevier, Vol.66, No.2, pp.248–255. [https://doi.org/10.1016/j.jcsr.2009.09.003]
Lou, T., and Karavasilis, T.L. (2019) Numerical Evaluation of Prestressed Steel-Concrete Composite Girders with External FRP or Steel Tendons, Journal of Constructional Steel Research, Elsevier, Vol.162, 105698. [https://doi.org/10.1016/j.jcsr.2019.105698]
Ryu, H.-K., Shim, C.-S., Chang, S.-P., and Chung, C.-H. (2004) Inelastic Behaviour of Externally Prestressed Continuous Composite Box-Girder Bridge with Prefabricated Slabs, Journal of Constructional Steel Research, Elsevier, Vol.60, No.7, pp.989–1005. [https://doi.org/10.1016/j.jcsr.2003.09.004]
Su, Q., Yang, G., and Bradford, M.A. (2015) Behavior of a Continuous Composite Box Girder with a Prefabricated Prestressed-Concrete Slab in Its Hogging-Moment Region, Journal of Bridge Engineering, The American Society of Civil Engineers, Vol.20, No.8, B4014004. [https://doi.org/10.1061/(ASCE)BE.1943-5592.0000698]
Long, G., Zhou, R., Ma, H., Xin, G., Emadi, S., and Shi, X. (2022) Experimental and Numerical Study on UHPC-RC Decks within Hogging Moment Region, Applied Sciences, MDPI, Vol.12, No.22, 11446. [https://doi.org/10.3390/app122211446]
Kang, B.-S., Ju, Y.-T., and Lee, Y.-H. (2006) Flexural Behaviors of PSC Composite Girders in Negative Moment Regions, Journal of the Korea Concrete Institute, KCI, Vol.18, No.2, pp.169–176, (in Korean). [https://doi.org/10.4334/JKCI.2006.18.2.169]
Choi,Y.H. (2012) Limitations on the Width-to-Thickness Ratio of Rectangular Concrete-Filled Tubular (CFT) Columns, Journal of Korean Society of Steel Construction, KSSC, Vol.24, No.4, pp.451–458, (in Korean). [https://doi.org/10.7781/kjoss.2012.24.4.451]
Lee, C.H., Ryu, I., Shin, D.J., Koo, J.H., and Yom, K.S. (2021) Prediction of Temperature Distribution and Strength of Unprotected Mega CFT Columns Exposed to Standard Fire, Journal of Korean Society of Steel Construction, KSSC, Vol.33, No.1, pp.1–10, (in Korean). [https://doi.org/10.7781/kjoss.2021.33.1.001]
Oh, J.Y., Lee, S.J., Jeon, J.W., Choi, S.-M., and Yang, I.S. (2021) An Experimental Study on the CFT Column in which the Tensile Force Acts in the Axial Perpendicular Direction through the Steel Plate, Journal of Korean Society of Steel Construction, KSSC, Vol.33, No.6, pp.395–401, (in Korean). [https://doi.org/10.7781/kjoss.2021.33.6.395]
Lee, B.-H., and Seo, S.-Y. (2022) Development and Structural Behaviors of New Vertical-Diaphragm Connections to CFT Column-H Beam Under Cyclic Loading, Journal of Korean Society of Steel Construction, KSSC, Vol.34, No.6, pp.363–372. (in Korean) [https://doi.org/10.7781/kjoss.2022.34.6.363]
Lee, H.J., Kim, R.-H., Cho, K.-I., and Ahn, J.-H. (2022) Prestressing Inducing Effect of Continuous Open-Top Steel Box Girder Using Modular CFT Members, Journal of the Korea Institute for Structural Maintenance and Inspection, KSMI, Vol.26, No.3, pp.111–119, (in Korean).
Korean Society of Steel Construction (2017) Design Standard for Steel Structural Members (Load & Resistance Factor Design), KDS 14 31 10 : 2017, Ministry of Land, Infrastructure and Transport (in Korean).
Kim, Y.-A., and Kim, J.-K. (2022) Evaluation of Prestress Loss of Steel Box Girder Reinforced with Prestressed CFT Due to Creep, Journal of Korean Society of Steel Construction, KSSC, Vol.34, No.6, pp.383–392, (in Korean). [https://doi.org/10.7781/kjoss.2022.34.6.383]
Dassault Systèmes Simulia (2014) ABAQUS 6.14: Abaqus Analysis User’s Guide, DSS, USA.
Hognestad, E. (1951) A Study of Combined Bending and Axial Load in Reinforced Concrete Members, University of Illinois Bulletin, UIUC, Vol.49, No.22, pp.43–54.
